- California residents
- California and Utah residents (Utah effective 7/1/18): this water heater does not meet ultra-low NOX (ULN) emissions requirements, regulations prohibit the sale, shipment or installation of this water heater in any air quality district that requires ULN water heaters
- Texas residents: this water heater model meets or exceeds low NOX (LN) emissions requirements for all air quality management districts

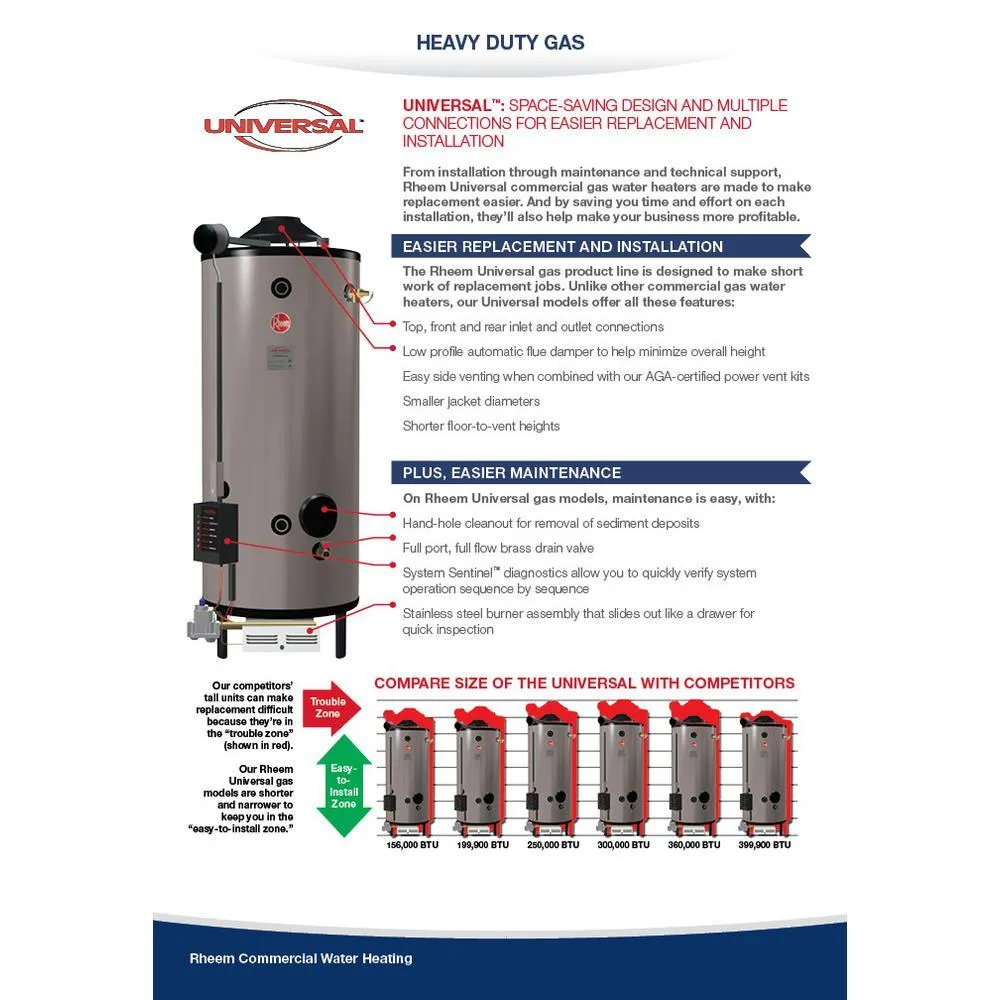

- Space saver design: the short heights and narrow jacket diameters, plus the top, front and rear water inlets/outlets offer the ultimate in installation flexibility
- System sentinel LED diagnostic system: our exclusive diagnostic system, with glowing LED lights, verifies system operation sequence by sequence
- Strong tank design: universals proprietary steel formulation, patented multi-flue design, combined with two coats of porcelain enamel, results in a superior heat exchanger design
- Stainless steel burners: precision burners, raised port design, are formed from high chromium stainless steel, each burner assembly slides out like a drawer for quick inspection and maintenance
- Low profile automatic flue damper: low profile damper minimizes overall product height and heavy-duty vent hood supports are designed to withstand the rigors of installation
- Easy to service: factory installed full port, full flow brass drain valve allows for faster draining and servicing and hand-hole cleanout for easy removal of lime/sediment deposits
- Direct spark to pilot ignition system: saves energy by igniting only when there is a call for heat
- Built-in corrosion resistance: patented anode design utilizes multiple magnesium rods to ensure corrosion resistance for a long tank life
- Fully insulated: energy saving sag and moisture proof fiberglass insulation surrounds the storage tank and heavy mineral wool insulation surrounds the combustion chamber
- Insulation: sag and moisture proof fiberglass insulation surrounds the storage tank and heavy mineral wool insulation surrounds the combustion chamber
- Gas control system: thermostat adjusts from 100°F to 180°F, 24-Volt combination gas valve includes main gas pressure regulation, on-off manual valve, 120-Volt/24-Volt transformer and high limit temperature cut-out
- Call 1-855-400-2552 before noon for same-day installation service in most areas, or
Features
| Item Weight | 845 |
| Uniform Energy Factor | 0 |
| Tank Lining Material | Glass |
| Recovery Rate at 90F Rise (gallons/hour) | 291 |
| Commercial/Residential | Commercial |
| Application Type | Commercial |
| Returnable | 180-Day |
| Water Heater Features | Glass-Lined Tank,Overheat Protection,Temperature Pressure Relief Valve |
| Minimum Temperature (F) | 100 °F |
| Tank Warranty | 3 Year |
| BTU Rating | 270000 |
| Wattage (watts) | 0 |
| Product Weight (lb.) | 845 lb |
| Maximum Temperature (F) | 180 |
| Water Heater Profile | Tall |
| Finish Family | Gray |
| Indoor/Outdoor | Indoor |
| Fuel Type | Gas |
| Pack Size | 1 |
| Vent Type | Atmospheric |
| Nominal Tank Capacity (gallons) | 100 |
| Household Size | 5 |
| Product Width (in.) | 30.25 in |
| Product Height (in.) | 73.875 in |
| Product Depth (in.) | 26.25 in |
| Water Connection Size (in.) | 2 |
| Tank Valve Size (in.) | 0.75 |
| Part Warranty | 1 Year |
| Labor Warranty | No Warranty |
| Certifications and Listings | CSA Listed,UL Listed |
